Regeneration of Volvo and Renault unit injectors - service of Unit Injector systems

What is a unit injector and why is it a critical engine element?

The unit injector, also called the Unit Injector - UI, is an element that combines the functions of a high-pressure pump and an injector in one housing. This system is used, among others, by Volvo Trucks andRenault Trucks in their truck engines of the D9, D12, D13, D16 (Volvo) and DXi7, DXi11, DXi13 (Renault) series.

Unlike Common Rail systems, where a central pump powers the fuel rail, in the Unit Injector system each cylinder has its own built-in pump, controlled mechanically by the camshaft and electrically by the engine control unit (ECU). The injection pressure generated directly in the injector reaches up to 2,200 bar - which means that the precision of workmanship and the technical condition of each component has a direct impact on engine power, fuel consumption and exhaust emission levels.

Due to this complexity, regeneration of unit injectors requires specialized equipment, knowledge and experience. A-Core Diesel Serwis provides these services for Volvo and Renault trucks - both for customers from Silesia and as part of a shipping service from all over Poland.

Unit Injector systems used by Volvo and Renault - technical review

Both brands have used similar technical solutions in the field of injection systems for years. Below is a list of engines and the corresponding types of unit injectors:

Volvo Trucks – Unit Injector systems

Model / series	Engine	Type UI	Euro
FH12 / FM12	D12C / D12D	Bosch UIDR / UIDE	Euro 2–3
FH / FM 9	D9A / D9B	Delphi E3 UI	Euro 3–4
FH / FM 13	D13A / D13B	Volvo/Delphi UI	Euro 4–5
FH16 / FM16	D16G	Delphi UI 16	Euro 4–5
FE / FL	D7E / D8K	Bosch UI	Euro 4–5

Renault Trucks – Unit Injector systems

Model / series	Engine	Type UI	Euro
Premium / Magnum	DXi11 / DXi13	Delphi E3 UI	Euro 3–5
Kerax / Midlum	DXi7 / DXi5	Bosch UI	Euro 3–5
Magnum AE / ATE	MIDR06.23	Bosch EUI	Euro 2–3
Kerax 420–480 DXi	DXi13	Delphi E3 UI	Euro 5

Symptoms of unit injector damage - how to recognize them?

Failure of unit injectors in Volvo and Renault truck engines is rarely sudden. Most often, it is a slow degradation of precise friction elements - the needle, piston and control valve. Early recognition of symptoms allows you to regenerate one or two cylinders instead of replacing the entire set.

Typical symptoms of a damaged unit injector

• Engine vibration at idle speed - clearly noticeable shaking of the entire cabin, especially after cold start
• Black or gray smoke – uneven fuel combustion in a given cylinder
• Loss of power – the engine does not achieve its nominal power, especially when loaded or climbing a hill
• Increased fuel consumption – faulty injection causes incomplete combustion and burning of excessive amounts of diesel oil
• Clapping or clicking from the cylinder head area - the characteristic sound of a damaged UI
• ECU error codes indicating deviations of injection parameters in a specific cylinder
• Increased oil temperature – a damaged UI causes back leakage, increasing friction and temperature
• Difficult starting – especially at temperatures below 0°C or after a long standstill

ECU / VCADS PRO error codes for Volvo vehicles

SPN/FMI Code	Description	Applies to
SPN 651 FMI 5/6/7	Cyl. 1 – no control / too low coil current UI	UI cyl. 1
SPN 652–656 FMI 5/6/7	Cyl. 2–6 – identical as above	UI cyl. 2–6
SPN 094 FMI 1	Fuel pressure too low - suspected UI leak	Fuel system
SPN 636 FMI 2	Camshaft sensor - UI synchronization error	Mechanics / UI
SPN 2791 FMI 9	UI injection time outside the norm - cylinder 1-6	UI / ECU

Error codes for Renault Trucks vehicles (DAVIE / DiCom)

Code	Description	Applies to
1048 / 1049	Fuel pressure regulator - standard deviation	Feed pump / UI
1090 / 1091	No cylinder injector control signal. 1–2	UI / wiring
1092–1095	UI cyl. control signal. 3-6 out of range	UI / ECU
2810	DXi injection time – outside the permissible range	UI system
4352	Internal leak UI - excessive return	UI needle / valve

Unit injector regeneration process – stage by stage

UI regeneration is a multi-stage procedure that requires precision comparable to that of a watchmaker. At A-Core Diesel Serwis, each unit injector goes through the same, repeatable process path - regardless of whether it comes from a Volvo D12, Renault DXi11 or another model.

Stage 1 – Admission and initial diagnostics

After disassembly from the vehicle (or after receipt by courier), each UI is registered with a serial number and catalog number. We perform external inspection: we check the condition of the nozzle seat, mounting flange, solenoid valve and power cables. Initial diagnostics allows you to estimate the scope of regeneration before disassembling the injector.

Stage 2 – Cold parameter test (pre-test)

Each UI goes to the testing table, where we measure its parameters in the state in which it arrived on the website. We register:

• Injection dose at operating pressure and idle speed
• Back-leak test
• Solenoid response time
• Volvo/Renault nominal values

Pre-test results are documented and compared to post-test results after recovery.

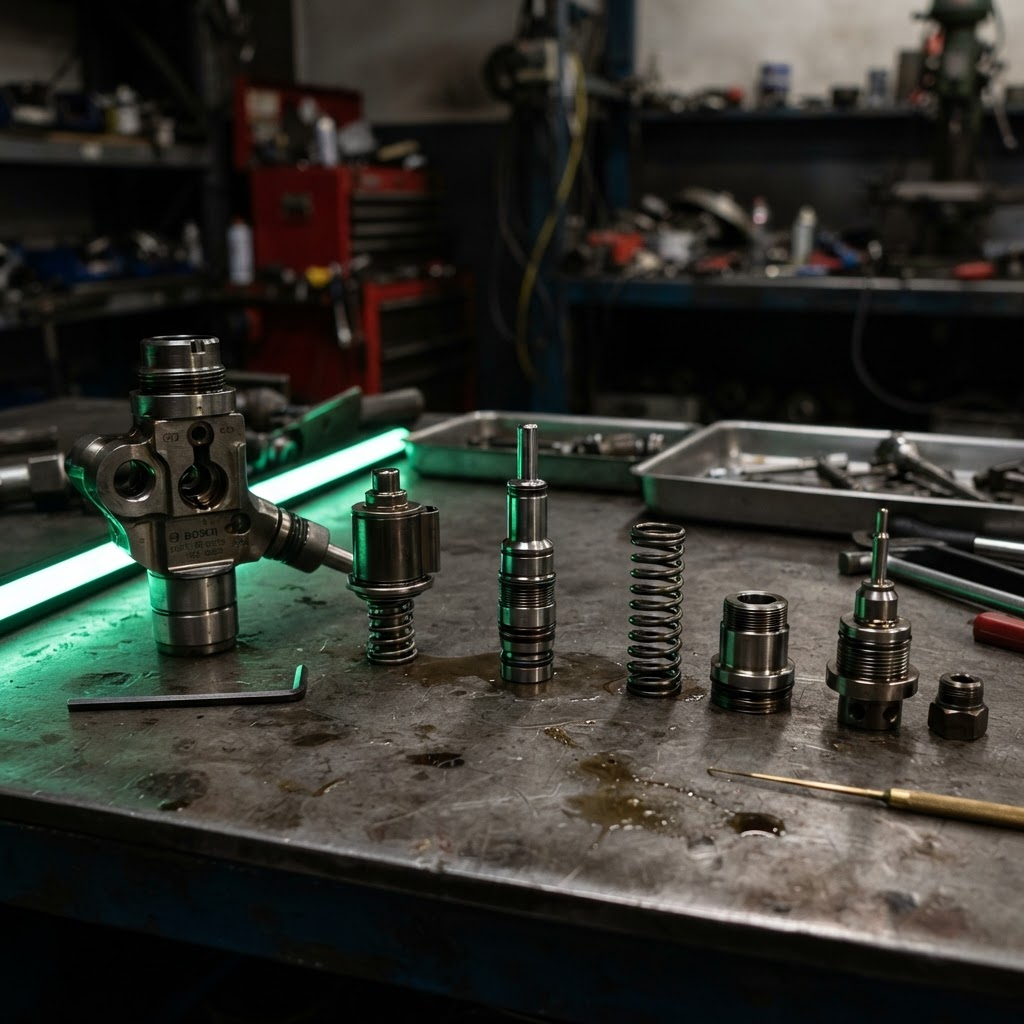

Stage 3 – Disassembly in clean conditions

The unit injector is dismantled in a station with controlled air purity. None of the precision elements may come into contact with mechanical impurities or moisture. Each part is described and arranged in a specific order for a given serial number.

Stage 4 – Inspection and verification of components

Under magnification and using measuring instruments, we check:

• Piston and cylinder – piston clearance (tolerance below 2 μm)
• Needle and nozzle seat – wear, condition, condition of sealing surface
• Control valve – clearance, patency of oil channels
• Solenoid valve – winding resistance, core and spring condition
• UI hull – cracks, thread damage, condition of fuel channels

Step 5 – Replacing worn components

We only replace components that do not meet Bosch/Delphi manufacturing standards. We use original service parts or certified OEM replacements. Each replaced part is registered in the service card of the given UI.

Step 6 – Assembly and calibration

The complex unit injector is calibrated with a precision of 1 μm. Adjusting the spacers determines the nozzle opening pressure and pilot injection dose. This is the stage that has the greatest impact on the quality and durability of regeneration.

Stage 7 – Final test on the test bench (post-test)

After assembly, each UI is re-tested according to the same procedures as the pre-test. We only accept results within a tolerance of ±2% from factory values. We issue the client a printout of the test report - both pre-test and post-test - as confirmation of the quality of the regeneration performed.

Volvo vs. Renault – differences in UI systems and what it means for regeneration

Although both brands use a similar Unit Injector concept, in service practice there are significant technical differences that affect the course and difficulty of regeneration:

Feature	Volvo (D12/D13)	Renault (DXi11/DXi13)
UI Provider	Bosch (older) / Delphi (newer)	Delphi E3 / Bosch EUI
UI drive	Camshaft - roller tappet	Camshaft - roller tappet
Max. injection pressure	up to 2,200 bar (D13)	up to 2,200 bar (DXi13)
Solenoid valve control	ECU Volvo EDC	ECU Renault EECU
Typical weak points	Piston, needle (D12 after 600,000 km)	Control valve, seal (DXi11)
Parts availability	Good – Bosch, Delphi, BEBE	Good – Delphi E3 kit
Calibration codes after regeneration	Required in VCADS PRO	Required in DAVIE

Shipping service – we deliver and return by courier

You don't have to immobilize your vehicle for days. A-Core Diesel Serwis offers shipping service for transport companies, logistics fleets and partner workshops from all over Poland. You send the unit injectors dismantled by your service to us by courier - we send them back refurbished within the agreed time.

What does the shipping service look like step by step

1. Call or write - provide the vehicle model, engine and number of pieces to be rebuilt
2. UI dismantling by your website or our mobile service (Silesia)
3. Shipping by courier (DPD / InPost / Scania Parts) to the service address in Knurów
4. Diagnostics, quotation and confirmation of the scope of work by e-mail or telephone
5. Regeneration according to the full procedure, test on the table, report
6. Return shipment with test report and warranty card

Served area - Silesia (~30 km from Knurów)

• Gliwice, Zabrze, Rybnik, Bytom, Ruda Śląska, Mikołów, Tychy, Żory
• Wodzisław Śląski, Jastrzębie-Zdrój, Pyskowice, Tarnowskie Góry
• Orzesze, Lędziny, Siemianowice Śląskie, Świętochłowice, Chorzów

Shipping service – all of Poland

• Warsaw, Kraków, Wrocław, Gdańsk, Szczecin, Łódź, Poznań
• Bydgoszcz, Lublin, Białystok, Rzeszów, Kielce, Opole, Radom
• All large transport bases and logistics centers in Poland

Why regeneration and not replacement?

The decision between regeneration and purchasing a new unit injector should be primarily an economic and ecological decision. New UI from OEM manufacturers (Bosch, Delphi) means very high costs - especially when several cylinders are damaged at the same time. Regeneration allows you to restore factory parameters for a fraction of this amount.

What is important - regeneration by a certified service is not a quality compromise. A properly regenerated unit injector works with the same precision as a new one, confirmed by an objective test report on a test bench. At A-Core, we provide a 12-month warranty for each regeneration.

Frequently asked questions - FAQ

Can older generation Volvo D12 unit injectors (Euro 2/3) be regenerated?

Yes. D12C and D12D engines with Bosch UIDR/UIDE systems are regularly serviced by us. Parts for these systems are available and the regeneration itself is well documented. These are some of the most graceful UIs to regenerate due to their simpler structure than the newer Delphi E3.

How many unit injectors are worth returning at the same time?

We always recommend regenerating thecomplete set (all cylinders at the same time), even if one or two UIs show worse parameters. The difference in injection times between new or regenerated and used UI causes uneven engine operation and accelerates the wear of other elements.

Is it necessary to reprogram the controller after UI regeneration?

Volvo vehicles require calibration via VCADS PRO (cylinder cut-out mode and dose balancing). In Renault, similarly byDAVIE. Mechanical regeneration itself does not change the UI codes - but the actual injection parameter changes, therefore calibration after installation is recommended for optimal performance.

What are the causes of premature wear of unit injectors?

The most common causes are: contaminated fuel (mechanical particles, water), replacing fuel and oil filters too rarely, operation at very low temperatures without a warm-up period, and in the case of Delphi systems - the use of engine oil that does not meet ACEA E4/E7 standards.

Do you accept UI from construction vehicles and machinery?

Yes - in addition to trucks, we service unit injectors from construction and agricultural machines and generators equipped with Volvo Penta, Deutz, Cummins, Perkins and other engines. Please contact us by phone before shipping to confirm the possibility of supporting a given UI type.

How to pack and ship unit injectors?

Each UI should be wrapped in bubble wrap or placed in a string bag and secured in a box with filling. Please include with your shipment: vehicle model, year of production, engine, number of kilometers traveled and description of symptoms. Before shipping, please contact us by phone or e-mail.
